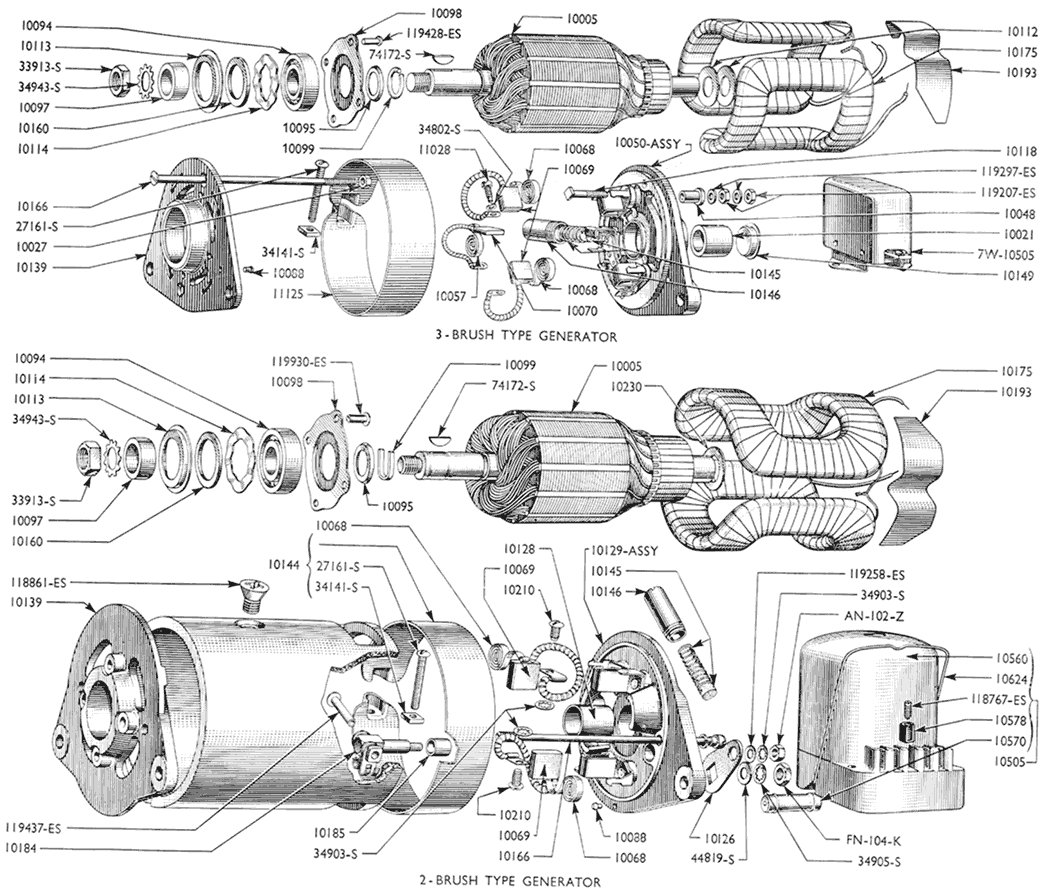

generator, cut-out and regulator 8 & 10hp
For identification purposes only, reproduced from Ford Motor Company parts list book.
Parts Shown
- AP10151: aquaplane dynamo mounting bracket from £49.55 each
- 7W10001: Dynamo assembly (3 brush) 3.5 inch diameter '39 from £268.66 each
- E494A10001A: Dynamo assy (3 brush) 3.5 inch diameter 3945 from £268.66 each
- E93A10001F: Dynamo assembly (2 brush) 4.5 inch diameter 4548 from £295.00 each
- E493A10001: Dynamo assembly (2 brush) 3.5 inch diameter 194559 from £268.66 each
- YE10505: Voltage cutout assy (fits on dynamo) 39 from £99.77 each
- E93A10505: Regulator and cutout RF96 6 volt from £147.61 each
- YE10001: Dynamo assembly, 3 brush 3.5 inch diameter, peg type from £268.66 each
- CB100: Dynamo brush set CB100 from £20.01 set
- CB362: Dynamo brush set CB362 from £19.99 set of 3
- CB105E: Dynamo brush sets CB105E from £20.01 set
- CB105: Dynamo brush set CB105 from £19.99 set
Applies to Vehicles
- Ford Model 19, Y (1932 to 1937)
- Ford Model 20, C & CX (1934 to 1937)
- Ford Eight, Model 7Y (1937 to 1939)
- Ford Ten, Model 7W (1937 to 1939)
- Ford Anglia, Model E04A (1939 to 1948)
- Ford Prefect, Model E93A (1939 to 1948)
- Ford Anglia, Model E494A (1949 to 1953)
- Ford Prefect, Model E493A (1949 to 1953)
- Ford Popular, Model 103E/104E (1953 to 1959)
- Ford 5 cwt. Van, Model E04C (1940 to 1948)
- Ford 5 cwt. Van, Model E494C (1949 to 1954)
- Ford 10 cwt. Van, Model E83W (1938 to 1957)
- Ford Estate Car, Model E83W (1949 to 1957)
- Ford Pickup, Model E83W (1950 to 1957)
