100E gearbox & clutch

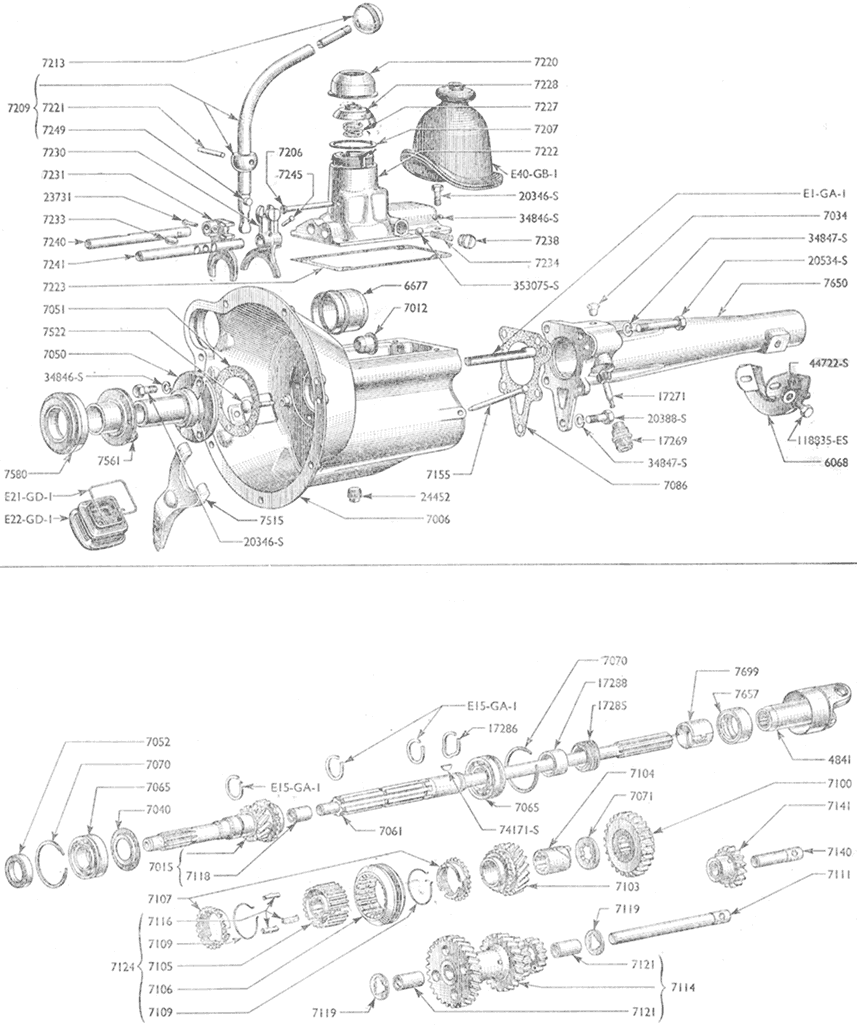

For identification purposes only, reproduced from Ford Motor Company parts list book.
Parts Shown
- 100E6068: Engine mount rear, gearbox mount from £39.63 each
- 100E7111: Countershaft from £25.92 each
- E40GB1: Gear stick/lever gaiter rubber 110mm diameter x 120mm high from £25.02 each
- 7W7052: seal (main drive gear) from £9.94 each
- Y7065: Bearing from £29.80 each
- E15GA1: snap ring from £3.98 each
- Y7118A: bush (main drive gear) from £18.29 each
- Y7121A: Bush (countershaft gear) from £14.58 each
- E747580A: Clutch release bearing from £55.04 each
- CE7141: gear, reverse idler & bush from £29.15 each
- 100E7114A: Lay gear countershaft and bush assembly from £107.91 each
- 100E7015B: Main drive gear from £98.56 each
- E0A7107A: synchronizer blocking ring from £23.14 each
- 100E17286: speedo gear retaining snap ring from £4.30 each
- 100E6677: Cover for starter motor drive from £21.15 each
- 100E7124: Synchronizer hub assembly from £98.00 each
- 100E7223: gasket from £4.17 each
- 105E7657: Seal (extension housing) from £15.04 each
- E0A7109: Spring ring from £3.95 each
- 100E7140: reverse idler shaft from £25.21 each
- 100E7086A: gearbox gasket from £4.43 each
