  9. main crankshaft bearing shell set

105E-6333 - main crankshaft bearing shell set

Replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a maximum of less 0.060" at additional cost. we also have limited number of sets which are OVERSIZE 0.015" on the outer size in standard, less 0.020" and 0.030".

note standard crankshaft main bearing journal size measures 2.1255" (53.988mm), undersize measure by 0.010" = 0.254mm, 0.020" = 0.508mm, 0.030" = 0.762mm, 0.040" = 1.016", 0.050" = 1.270mm, 0.060" = 1.524mm. please carry out machine work on engine parts when you have the replacement pieces actually to hand. we can not be held responsible for any variations on measurements which are for guidance purposes only.

Product Images
click to view larger image

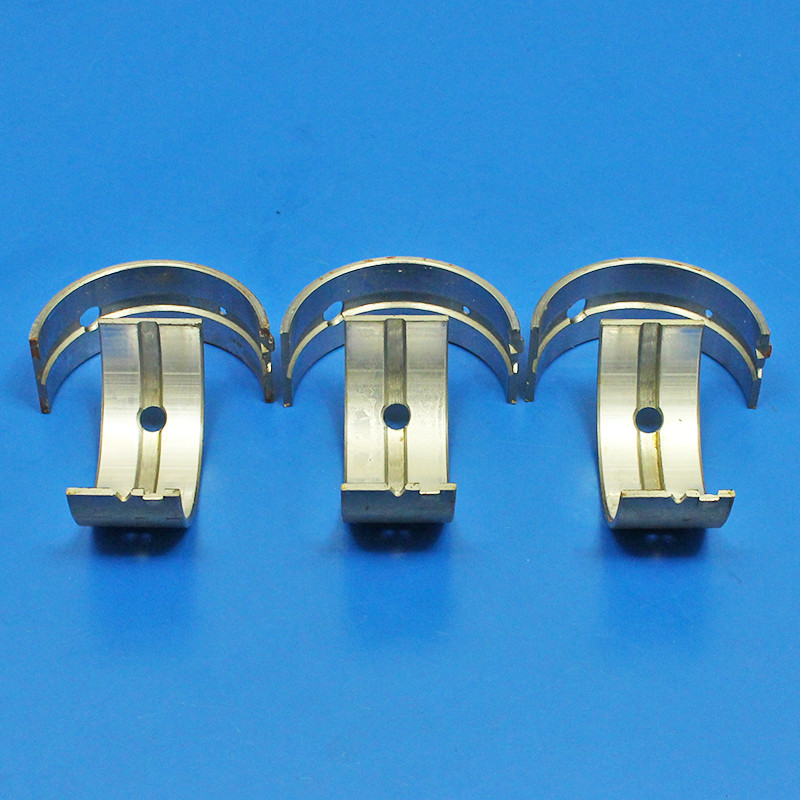

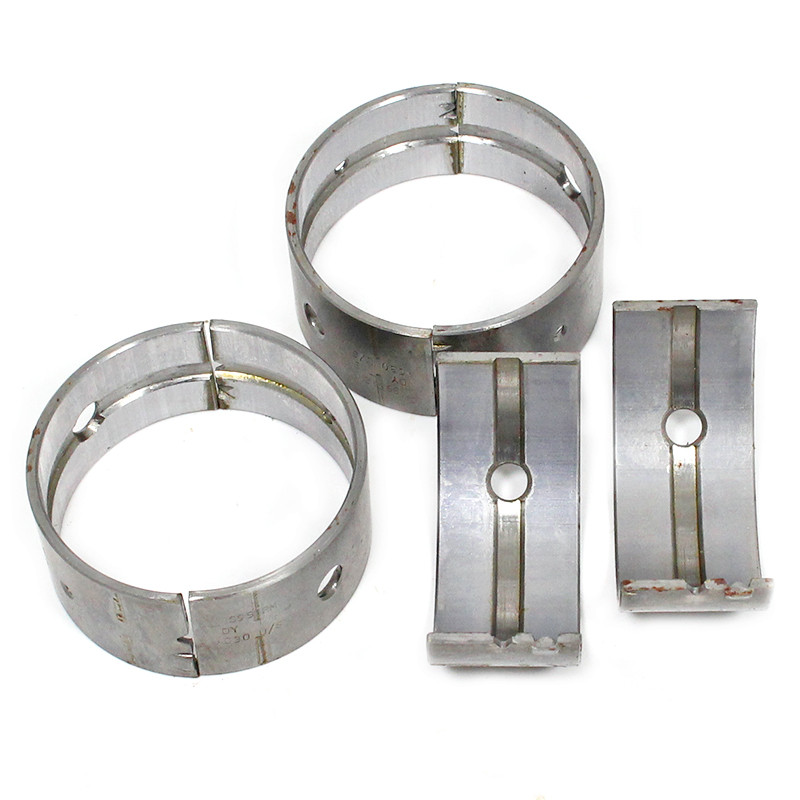

  • main crankshaft bearing shell set
Ordering
    To order: enter quantity for the product variation/s you want & click the 'Add' button at the bottom right.
  • standard size

    105E-6333-A - standard size

    standard outside, standard inside size
    @ £69.94 / engine set
    Subtotal:
  • under 10 thou

    105E-6333-B - under 10 thou

    standard outside, under 0.010" inside

    @ £69.94 / engine set
    Subtotal:
  • under 20 thou

    105E-6333-C - under 20 thou

    standard outside, under 0.020" inside

    @ £69.94 / engine set
    Subtotal:
  • under 30 thou

    105E-6333-D - under 30 thou

    standard outside, under 0.030" inside
    @ £69.94 / engine set
    Subtotal:
  • under 40 thou

    105E-6333-40 - under 40 thou

    standard outside, under 0.040" inside
    @ £69.94 / engine set
    Subtotal:
  • under 60 thou

    105E-6333-60 - under 60 thou

    standard outside, under 0.060" inside
    @ £69.94 / engine set
    Subtotal:
  • standard size - +0.015 outer

    105E-6333-E - standard size - +0.015 outer

    oversize 0.015" outside, standard inside size
    @ £69.94 / engine set
    Subtotal:
  • under 20 thou - +0.015 outer

    105E-6333-L - under 20 thou - +0.015 outer

    oversize 0.015" outside, under 0.020" inside
    @ £69.94 / engine set
    Subtotal:
  • under 30 thou - +0.015 outer

    105E-6333-M - under 30 thou - +0.015 outer

    oversize 0.015" outside, under 0.030" inside
    @ £69.94 / engine set
    Subtotal:
Total: £
Prices shown VAT @ 20%
